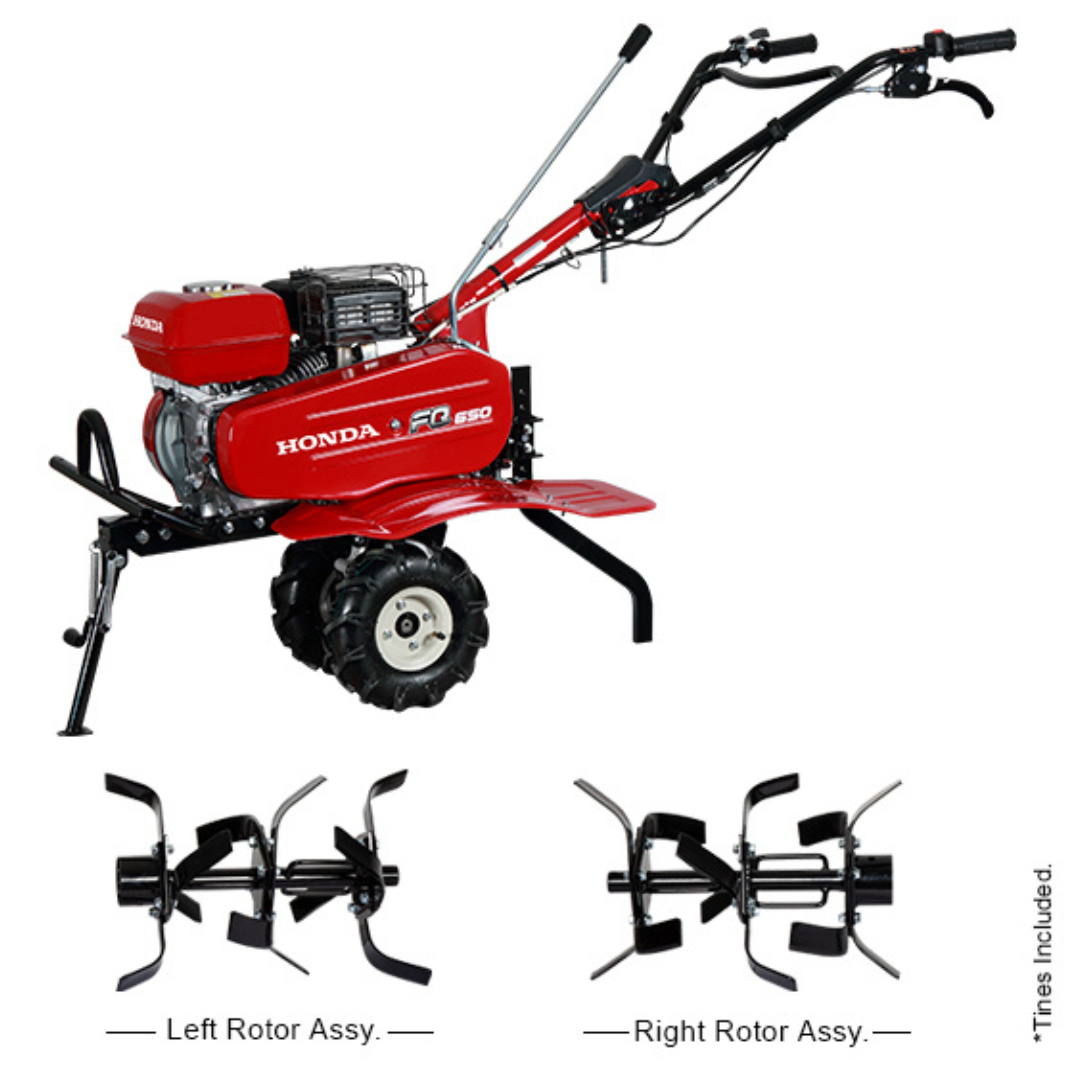

Honda FQ650 Tiller
Description
Engine
| Air Cleaner | Dual type |
| Displacement (cm3) | 196 |
| Description Code | 4 Stroke, Force air-cooled, OHV engine, Single cylinder |
| Fuel Tank Capacity (L) | 2.4 |
| Fuel Type | Unleaded gasoline |
| Ignition System | Transistorized Magneto |
| Maximum Torque (N-m @ rpm) | 12.4 @ 2,500 |
| Model | GP200H |
| Rated Power | 3.7 / 3600 (kW/rpm) |
| Starting System | Recoil starter |
| Dimensions (L x W x H) | 1475 X 650 X 1000 |
| Displacement | 196 cc |
| Net Power kW(ps)/rpm | 4.3/5.5 @ 3,600 |
| Type | 4 Stroke, Force air-cooled, OHV engine, Single cylinder |
Drive Train
| Clutch | Belt tension type |
| Transmission | 2 Forward, 1 Reverse Gear |
Tiller
| Tilling Width | 900 mm |
| Clutch | Belt tension type |
| Adjustable handle height | 3 levels |
| Dry Weight (kg) * Oil, fuel not included + Rotor | 51.2 |
| Dry Weight (kg) * Oil, fuel not included + Rotor + Tyre | 55 |
| Dimensions (LXWXH) (mm) | 1,475 X 650 X 1000 |
