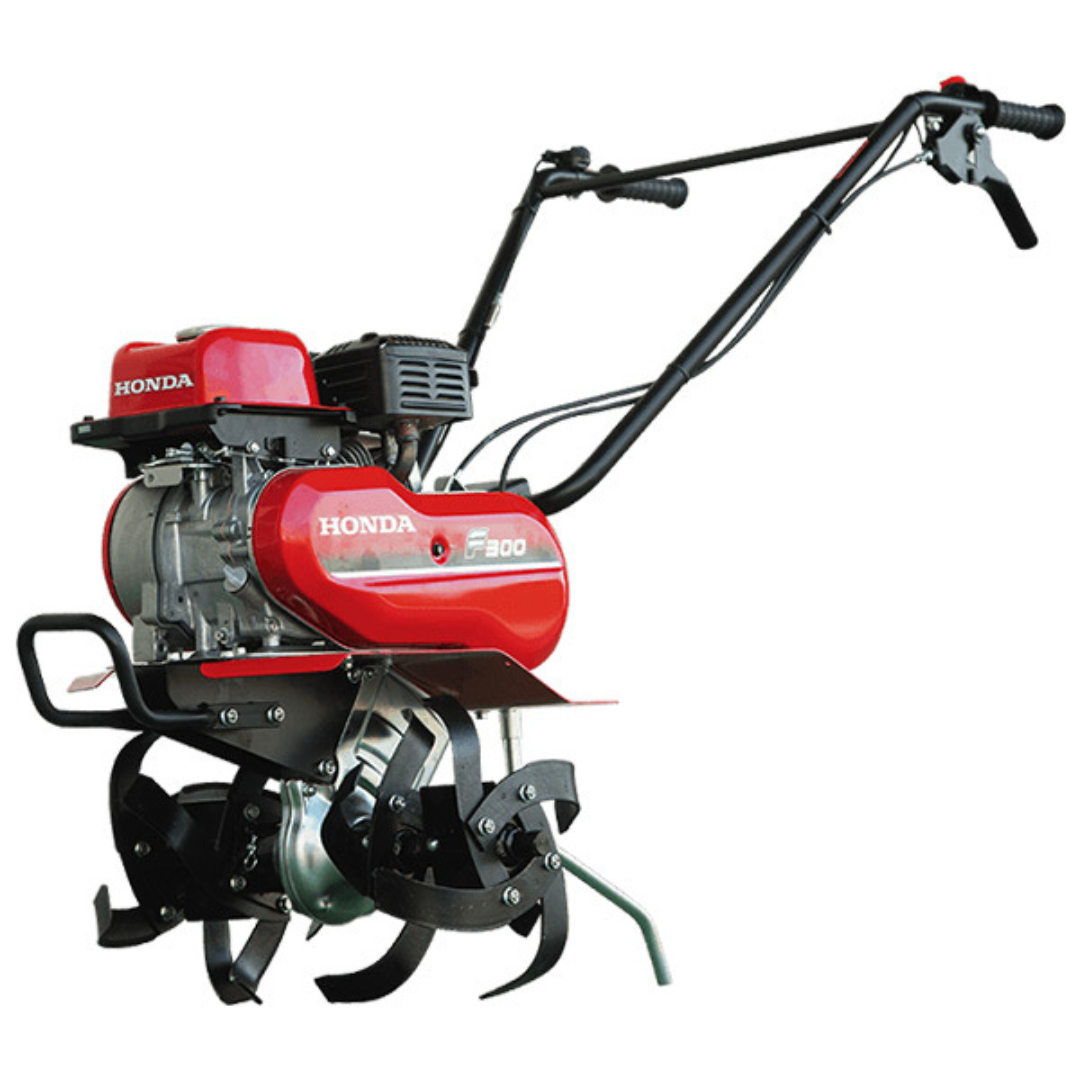

Honda F300 Tiller

Description

Engine

Air Cleaner	Dual element type
Bore X Stroke (mm)	46.0 x 48.0
Compression ratio	9.0 : 1
Cooling System	Forced-air
Displacement (cm3)	79.7
Description Code	GCADD
Fuel Tank Capacity (L)	1.4 liter
Fuel Type	Unleaded gasoline
Ignition System	Transistorized magneto ignition
Model	GX80D
Net Power	[1.5kW(2hp)]
Spark Plug	C4HSB (NGK)
Starting System	Recoil
Dry Weight(Kg)	38
Continuous running hours (Hrs.)	2.5 hrs.
Dimensions (L x W x H)	1320 x 550 x 945 mm
Type	4-stroke, OHV, single cylinder, inclined by 25°
Max. net torque	4.5 N-m @ 2500 rpm
Lubrication	Splash
Engine Oil Capacity	0.36 liter
Carburettor:	Horizontal type, butterfly valve

Transmission

Mechanism From Engine Transmission	V-Belt
Main Clutch	Belt Tension Type

Drive Train
